ペルチェ素子_ETXシリーズ

Tark Thermal Solutions(旧Laird Thermal Systems)のペルチェ素子ETXシリーズ一覧です。

メーカー型番	品名	Qc Max ΔT=0℃ Th=27℃	ΔT Max Qc=0W Th=27℃	長さ	幅	高さ	データシート	製品詳細
387004923	ETX3-3-F2-1518-TA-W6	7.7 W	83.2 °C	0.591 in [ 15 ] mm	0.591 in [ 15 ] mm	0.142 in [ 3.6 ] mm		詳細
387004960	ETX2.3-4-F1-1919-TA-RT-W6	8.7 W	83.2 °C	0.764 in [ 19.4 ] mm	0.764 in [ 19.4 ] mm	0.141 in [ 3.6 ] mm		詳細
387004946	ETX4-3-F1-2020-TA-RT-W6	9.2 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.185 in [ 4.7 ] mm		詳細

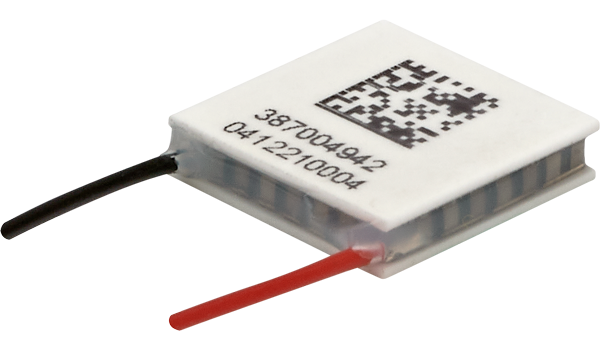

387004942	ETX4-3-F1-1515-TA-RT-W6	9.5 W	83.2 °C	0.591 in [ 15 ] mm	0.591 in [ 15 ] mm	0.126 in [ 3.2 ] mm		詳細
387004953	ETX4-3-F1-1515-TA-EP-W6	9.5 W	83.2 °C	0.591 in [ 15 ] mm	0.591 in [ 15 ] mm	0.126 in [ 3.2 ] mm		詳細

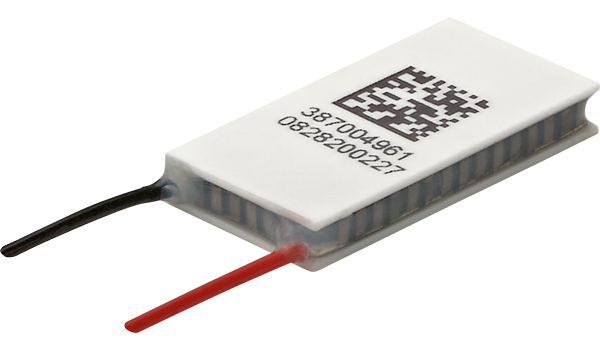

387004961	ETX2-6-F1-1225-TA-RT-W6	10.2 W	83.2 °C	0.984 in [ 25 ] mm	0.492 in [ 12.5 ] mm	0.134 in [ 3.4 ] mm		詳細
387004933	ETX3-48-F1-1212-GG-W6	11.3 W	83.2 °C	0.472 in [ 12 ] mm	0.472 in [ 12 ] mm	0.081 in [ 2.1 ] mm		詳細
387006328	ETX2.6-6-F1-1225-TA-RT-W6	12.7 W	83.2 °C	0.984 in [ 25 ] mm	0.492 in [ 12.5 ] mm	0.122 in [ 3.1 ] mm		詳細
387004959	ETX2.6-6-F1-1225-TA-W6	12.7 W	83.2 °C	0.984 in [ 25 ] mm	0.492 in [ 12.5 ] mm	0.122 in [ 3.1 ] mm		詳細
387004943	ETX6-3-F1-2020-TA-RT-W6	14.5 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.15 in [ 3.8 ] mm		詳細
387004952	ETX1.6-12-F2-3030-TA-RT-W6	15.7 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.157 in [ 4 ] mm		詳細
387004957	ETX7-3-F1-2020-TA-RT-W6	18.5 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.138 in [ 3.5 ] mm		詳細
387004956	ETX4-6-F2-2143-TA-RT-W6	18.5 W	83.2 °C	1.693 in [ 43 ] mm	0.827 in [ 21 ] mm	0.15 in [ 3.8 ] mm		詳細
387009460	ETX4-6-F2-2138-TA-RT-W6	18.5 W	83.2 °C	1.701 in [ 43.2 ] mm	0.811 in [ 20.6 ] mm	0.15 in [ 3.8 ] mm		準備中
387009474	ETX4-7-F1-2020-TA-RT-W8	19.8 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.142 in [ 3.6 ] mm		準備中
387009472	ETX4-7-F1-2020-TA-W8	19.8 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.142 in [ 3.6 ] mm		準備中
387009473	ETX4-7-F1-2020-TB-EP-W8	19.8 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.142 in [ 3.6 ] mm		準備中
387009475	ETX4-7-F1-2020-TB-W600MM	19.8 W	83.2 °C	0.787 in [ 20 ] mm	0.787 in [ 20 ] mm	0.142 in [ 3.6 ] mm		準備中
387005318	ETX2-12-F1-2525-TA-W6	20.6 W	83.2 °C	0.984 in [ 25 ] mm	0.984 in [ 25 ] mm	0.134 in [ 3.4 ] mm		詳細
387004929	ETX4-7-F2-3030-TA-RT-W6	20.9 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.163 in [ 4.1 ] mm		詳細
387004941	ETX4-7-F1-2323-TA-RT-W6	21.7 W	83.2 °C	0.906 in [ 23 ] mm	0.906 in [ 23 ] mm	0.126 in [ 3.2 ] mm		詳細
387004920	ETX4-7-F1-2323-L-RT-W6	21.7 W	83.2 °C	0.906 in [ 23 ] mm	0.906 in [ 23 ] mm	0.126 in [ 3.2 ] mm		詳細
387004962	ETX4-7-F1-2323-TA-W6	21.7 W	83.2 °C	0.906 in [ 23 ] mm	0.906 in [ 23 ] mm	0.126 in [ 3.2 ] mm		詳細
387004963	ETX9-3-F1-3030-TA-RT-W6	22.1 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.18 in [ 4.6 ] mm		詳細
387004945	ETX2-12-F2-3030-TA-RT-W6	22.6 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.141 in [ 3.6 ] mm		詳細
387004970	ETX2-12-F2-3030-TA-W6	22.6 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.141 in [ 3.6 ] mm		詳細
387004954	ETX9-3-F2-2525-TA-RT-W6	23.6 W	83.2 °C	1.13 in [ 28.7 ] mm	1 in [ 25.4 ] mm	0.197 in [ 5 ] mm		詳細
387004939	ETX9-3-F2-2525-TA-W6	23.6 W	83.2 °C	1.13 in [ 28.7 ] mm	1 in [ 25.4 ] mm	0.197 in [ 5 ] mm		詳細
387009503	ETX9-3-F2-2525-TB-W4.25	23.6 W	83.2 °C	1.13 in [ 28.7 ] mm	1 in [ 25.4 ] mm	0.197 in [ 5 ] mm		準備中
387004964	ETX2.5-12-F1-3030-TA-RT-W6	24.1 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.157 in [ 4 ] mm		詳細
387004969	ETX2.5-12-F1-4040-TA-RT-W6	24.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.165 in [ 4.2 ] mm		詳細
387004949	ETX5-6-F1-2040-TA-RT-W6	25.1 W	83.2 °C	1.575 in [ 40 ] mm	0.787 in [ 20 ] mm	0.142 in [ 3.6 ] mm		詳細
387005354	ETX2.6-12-F1-2525-TA-W6	25.5 W	83.2 °C	0.984 in [ 25 ] mm	0.984 in [ 25 ] mm	0.122 in [ 3.1 ] mm		詳細
387004968	ETX3-12-F2-3030-TA-RT-W6	31.4 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.138 in [ 3.5 ] mm		詳細
387009510	ETX3-12-F2-3030-TA-W6	31.4 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.138 in [ 3.5 ] mm		準備中
387009500	ETX3-12-F2-3030-11-EP-W18	31.4 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.138 in [ 3.5 ] mm		準備中
387004966	ETX6-7-F2-3030-TA-RT-W6	33.2 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.15 in [ 3.8 ] mm		詳細
387009476	ETX6-7-F1-3030-TA-W8	33.2 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.15 in [ 3.8 ] mm		準備中
387009959	ETX6-7-F1-3030-TA-RT-W8	33.2 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.15 in [ 3.8 ] mm		準備中
387004958	ETX14-3-F1-3030-TA-RT-W6	33.8 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.18 in [ 4.6 ] mm		詳細
387004926	ETX14-3-F1-3030-TB-EP-W6	33.8 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.18 in [ 4.6 ] mm		詳細
387004938	ETX4-12-F2-4040-TA-RT-W6	37.3 W	83.2 °C	1.732 in [ 44 ] mm	1.575 in [ 40 ] mm	0.163 in [ 4.1 ] mm		詳細
387008313	ETX4-12-F2-4040-TB-W6	37.3 W	83.2 °C	1.732 in [ 44 ] mm	1.575 in [ 40 ] mm	0.163 in [ 4.1 ] mm		準備中
387004915	ETX4-12-F1-4040-TA-RT-W6	37.8 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.189 in [ 4.8 ] mm		詳細
387009501	ETX4-12-F1-4040-TA-W8	37.8 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.189 in [ 4.8 ] mm		準備中
387004967	ETX4-12-F1-3030-TA-RT-W6	38.8 W	83.2 °C	1.17 in [ 29.7 ] mm	1.17 in [ 29.7 ] mm	0.126 in [ 3.2 ] mm		詳細
387004924	ETX4-12-F1-3030-10-W6	38.8 W	83.2 °C	1.17 in [ 29.7 ] mm	1.17 in [ 29.7 ] mm	0.126 in [ 3.2 ] mm		詳細
387004965	ETX4-12-F1-3030-TA-EP-W6	38.8 W	83.2 °C	1.17 in [ 29.7 ] mm	1.17 in [ 29.7 ] mm	0.126 in [ 3.2 ] mm		詳細
387004911	ETX4-12-F1-3030-TA-W6	38.8 W	83.2 °C	1.17 in [ 29.7 ] mm	1.17 in [ 29.7 ] mm	0.126 in [ 3.2 ] mm		詳細
387004935	ETX4-12-F1-3030-TB-RT-W6	38.8 W	83.2 °C	1.17 in [ 29.7 ] mm	1.17 in [ 29.7 ] mm	0.126 in [ 3.2 ] mm		詳細
387004936	ETX4-12-F2-3030-TA-RT-W6	38.8 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.126 in [ 3.2 ] mm		詳細
387004955	ETX8-7-F2-3030-TA-RT-W6	47 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.137 in [ 3.5 ] mm		詳細
387004950	ETX8-7-F1-3030-TA-RT-W6	47 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.131 in [ 3.3 ] mm		詳細
387004940	ETX6-12-F1-3030-TA-RT-W6	59.4 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.126 in [ 3.2 ] mm		詳細
387004947	ETX6-12-F1-3030-TA-W6	59.4 W	83.2 °C	1.181 in [ 30 ] mm	1.181 in [ 30 ] mm	0.126 in [ 3.2 ] mm		詳細
387004917	ETX6-12-F1-4040-TA-RT-W6	59.4 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.15 in [ 3.8 ] mm		詳細
387007226	ETX6-12-F1-4040-TB-RT-W6	59.4 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.15 in [ 3.8 ] mm		準備中
387009478	ETX6-12-F1-4040-TA-EP-W8	59.4 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.15 in [ 3.8 ] mm		準備中
387009477	ETX6-12-F1-4040-TA-W8	59.4 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.15 in [ 3.8 ] mm		準備中
387008747	ETX5-16-F1-4040-TA-W8	64.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.134 in [ 3.4 ] mm		準備中
387009479	ETX5-16-F1-4040-TA-RT-W8	64.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.134 in [ 3.4 ] mm		準備中
387004934	ETX8-12-F2-2525-TA-RT-W6	77.8 W	83.2 °C	1.06 in [ 26.9 ] mm	0.967 in [ 24.6 ] mm	0.077 in [ 2 ] mm		詳細
387006453	ETX8-12-F2-2525-TA-W6	77.8 W	83.2 °C	1.06 in [ 26.9 ] mm	0.967 in [ 24.6 ] mm	0.077 in [ 2 ] mm		準備中
387004922	ETX8-12-F1-4040-TA-RT-W6	84 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.131 in [ 3.3 ] mm		詳細
387008516	ETX8-12-F1-4040-TA-W6	84 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.131 in [ 3.3 ] mm		準備中
387009485	ETX8-12-F1-4040-TB-EP-W8	84 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.131 in [ 3.3 ] mm		準備中
387009484	ETX8-12-F1-4040-TB-RT-W8	84 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.131 in [ 3.3 ] mm		準備中
387004951	ETX7-16-F1-4040-TA-RT-W6	84.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.126 in [ 3.2 ] mm		詳細
387009505	ETX7-16-F1-4040-TA-W8	84.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.126 in [ 3.2 ] mm		準備中
387009506	ETX7-16-F1-4040-TB-W8	84.1 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.126 in [ 3.2 ] mm		準備中
387009502	ETX8-12-F2-4040-TB-RT-W6	84.5 W	83.2 °C	1.732 in [ 44 ] mm	1.575 in [ 40 ] mm	0.131 in [ 3.3 ] mm		準備中
387004937	ETX6-19-F1-4040-TA-RT-W6	91.6 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.154 in [ 3.9 ] mm		詳細
387004931	ETX11-12-F2-3030-TA-RT-W6	108.2 W	83.2 °C	1.339 in [ 34 ] mm	1.181 in [ 30 ] mm	0.095 in [ 2.4 ] mm		詳細
387004944	ETX11-12-F1-4040-TA-RT-W6	109 W	83.2 °C	1.575 in [ 40 ] mm	1.575 in [ 40 ] mm	0.138 in [ 3.5 ] mm		詳細
387006544	ETX14-12-F1-6262-TA-W6	138 W	83.2 °C	2.441 in [ 62 ] mm	2.441 in [ 62 ] mm	0.18 in [ 4.6 ] mm		詳細
387006545	ETX14-12-F1-6262-TA-RT-W6	138 W	83.2 °C	2.441 in [ 62 ] mm	2.441 in [ 62 ] mm	0.18 in [ 4.6 ] mm		詳細
387004927	ETX15-12-F2-4040-TA-RT-W6	142.8 W	83.2 °C	1.732 in [ 44 ] mm	1.575 in [ 40 ] mm	0.112 in [ 2.8 ] mm		詳細
387004932	ETX8-28-F2-5252-TA-RT-W6	190.5 W	83.2 °C	2.205 in [ 56 ] mm	2.047 in [ 52 ] mm	0.15 in [ 3.8 ] mm		詳細
387004930	ETX25-12-F1-6262-TA-W6	245.1 W	83.2 °C	2.441 in [ 62 ] mm	2.441 in [ 62 ] mm	0.161 in [ 4.1 ] mm		詳細
387004948	ETX25-12-F1-6262-TA-RT-W6	245.1 W	83.2 °C	2.441 in [ 62 ] mm	2.441 in [ 62 ] mm	0.161 in [ 4.1 ] mm		詳細
387004919	ETX15-24-F2-5252-TA-W6	269.4 W	83.2 °C	2.205 in [ 56 ] mm	2.047 in [ 52 ] mm	0.13 in [ 3.3 ] mm		詳細
387006300	ETX15-24-F2-5252-TA-RT-W6	269.4 W	83.2 °C	2.205 in [ 56 ] mm	2.047 in [ 52 ] mm	0.13 in [ 3.3 ] mm		詳細
387004921	ETX15-28-F2-5252-TA-RT-W6	321.9 W	83.2 °C	2.205 in [ 56 ] mm	2.047 in [ 52 ] mm	0.13 in [ 3.3 ] mm		詳細

※内容は予告なく変更される場合がありますので、ご採用の際にはメーカーサイトで最新情報をご確認下さい。
